Mastering Valve Technologies: A Deep Dive into Hydraulic and Pneumatic Systems

Hydraulic and Pneumatic Valve Technologies are at the heart of fluid power systems. These valves control the flow, direction, and pressure of liquids or gases, making machines move and machinery work smoothly. Whether in factory machines, construction equipment, or simple air tools, understanding how these valves operate helps you pick the right parts and keep systems running well.

What Are Hydraulic Systems?

Hydraulic systems use liquid, usually oil, to transfer force through a network of hoses and cylinders. When a pump pushes oil into a cylinder, it moves a piston that can lift, push, or turn heavy loads. The liquid does not compress, so it delivers steady, strong force even under high pressure. Valves in these systems open or close pathways, letting oil move where it’s needed or holding it in place to keep a tool or machine steady.

What Are Pneumatic Systems?

Pneumatic systems work on the same idea but use compressed air instead of liquid. An air compressor pressurizes air and sends it through pipes to actuators, which might push pistons or spin motors. Because air compresses, these systems deliver lighter force and faster motion. They are common in packaging machines, air brakes, and simple tools like nail guns. Pneumatic valves control the flow of air, opening channels to start movement or shutting them to stop.

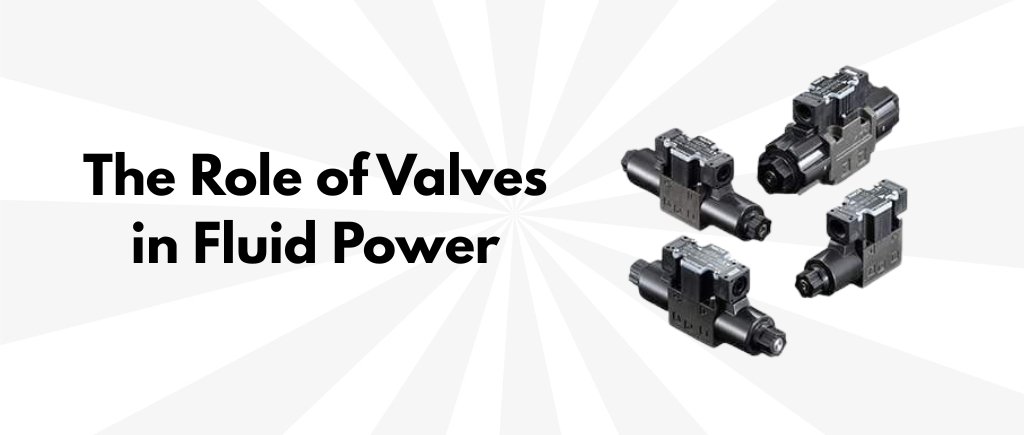

The Role of Valves in Fluid Power

Valves act like traffic signals in hydraulic and pneumatic networks. They decide when to let fluid or air pass, when to stop it, and how fast it moves. With the right valve, you can adjust speed, prevent overloads, and keep machines working safely. A small valve jam or leak can slow an entire production line, so picking quality parts and checking them often is key.

Common Types of Hydraulic Valves

Directional Control Valves: These send liquid to different paths. A simple two-way valve might let oil flow into a cylinder or hold it back. More complex four-way valves can switch flow between two cylinders, allowing forward and backward motion.

Pressure Relief Valves: When pressure goes too high, these valves open to let some oil return to the tank. This prevents damage to hoses and components.

Flow Control Valves: These limit how fast oil moves. By adjusting a knob, you can slow down an actuator for smooth starts and stops.

Common Types of Pneumatic Valves

On/Off Valves: Also called shut-off valves, these simply let air flow or stop it. They’re used in many simple tools.

Five-Port Valves: These control single or double acting cylinders, directing air to extend or retract a piston.

Quick Exhaust Valves: They let air leave a cylinder quickly, speeding up retraction and improving cycle times.

Choosing the Right Valve

When you pick a valve, think about the system’s pressure, flow rate, and the environment. For hydraulic valves, check that the valve’s pressure rating matches your pump’s output. Ensure the flow capacity won’t slow down your machine. For pneumatic valves, consider how fast you need movement and whether you need a quiet operation—some valves include mufflers to reduce noise. Also, look at materials. Steel valves suit high-pressure oil, while brass or plastic might work for low-pressure air.

Installation and Basic Maintenance

Install valves in a clean area to avoid dirt entering the system. Use the correct fittings and sealants to prevent leaks. Mount valves so you can reach them for inspection and repair. Regularly check for oil or air leaks, listen for hissing sounds, and feel for vibrations. Replace worn seals before they fail. A simple filter can keep contaminants from entering your valves and wearing them out.

Troubleshooting Common Issues

If a valve sticks, first check for dirt or rust. Clean the valve body and replace filters. If pressure drops or movement slows, inspect hoses for leaks and ensure the pump or compressor is working at full capacity. In hydraulic systems, low oil levels can introduce air, causing spongy operation—top up the tank and bleed any trapped air.

Safety Tips

Always relieve pressure before servicing a valve. Wear eye protection to guard against fluid or debris. For hydraulic systems, be aware that oil under pressure can cut skin. In pneumatic systems, sudden releases of air can fling objects—secure loose parts before testing.

Looking Ahead

Valve design continues to improve. New sensor-linked valves can detect when a seal is wearing thin and signal for maintenance. Energy-saving valves reduce power loss by closing more tightly. As factories and workshops aim for smarter automation, valves with built‑in monitors will help machines run longer with less downtime.

Understanding hydraulic and pneumatic valve technologies makes it easier to build, fix, and improve fluid power systems. With the right valve in place, your machines will run smoothly, safely, and for many years.
