Essential Tools For Testing Hydaulic Cylinder Effectively

Testing hydraulic cylinders is crucial for maintaining optimal performance, safety, and reliability in industrial operations. For quality heads, hydraulic equipment inspectors, and maintenance teams, understanding the testing hydraulic cylinders process and the right tools to use is vital to ensure cylinders operate flawlessly over their service life. From the first inspection to advanced diagnostics, this guide covers the essential tools that make testing hydraulic cylinders efficient, accurate, and practical.

Why Testing Hydraulic Cylinders Matters

Hydraulic cylinders are the workhorses of heavy machinery, manufacturing lines, and mobile equipment. Any failure can cause costly downtime, safety hazards, or damage to the entire system. Proper testing identifies leaks, pressure loss, seal wear, and other faults early, reducing risks and extending equipment life.

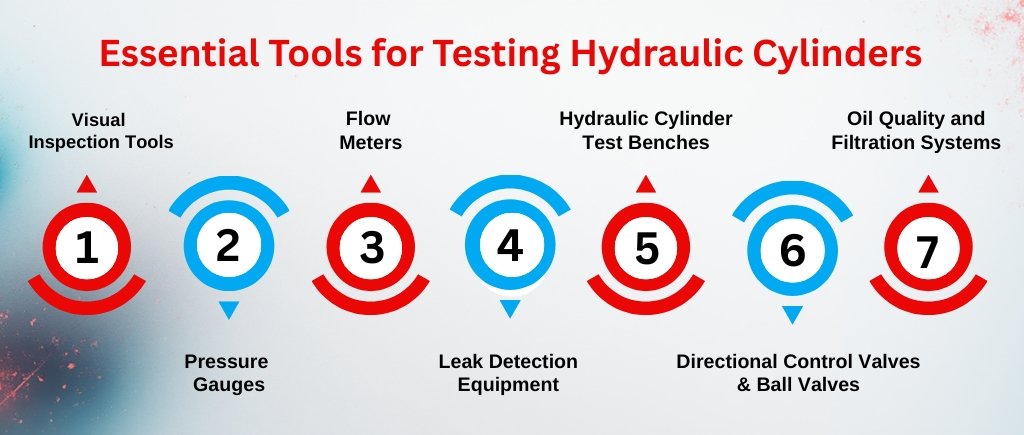

1. Visual Inspection Tools

Start with a thorough physical check. Use bright inspection lights and magnification to spot:

• Oil leaks around seals and hoses
• Rod surface damage such as pitting or scoring
• Cylinder body cracks or corrosion

2. Pressure Gauges

Accurate pressure gauges are used to:

• Measure operating pressures on both piston and rod sides
• Confirm pressure differences match cylinder design (often a 2:1 ratio)
• Monitor pressure hold tests to detect internal leaks

3. Flow Meters

These devices measure hydraulic fluid flow rates and help diagnose:

• Excessive return flow indicating internal leakage
• Pump performance and efficiency
  Flow meters are especially useful during operational and return line tests.

4. Leak Detection Equipment

Ultrasonic leak detectors can pick up the sound of tiny leaks inside the cylinder, even when visual or pressure tests don’t reveal problems.

5. Hydraulic Cylinder Test Benches

Test benches simulate real-use conditions and perform a series of diagnostic tests on the cylinders:

• Pressure and leak testing at multiple points
• Stroke measurement and smoothness checking
• Cycle endurance testing to identify fatigue failures
• Data logging for quality control and traceability

6. Directional Control Valves and Ball Valves

Used to isolate sections of the hydraulic circuit during testing and to control flow direction allowing thorough and safe inspections.

7. Oil Quality and Filtration Systems

Ensuring clean hydraulic fluid during testing prevents contamination-related errors and mimics real operational environments, improving the accuracy of diagnostics.

Interactive Tips to Maximise Testing Efficiency

• Regularly update test equipment calibration to maintain accuracy.
• Use portable diagnostic kits for on-site quick checks and troubleshooting.
• Document every test using data collection software integrated with test benches for analytics and future comparison.
• Train your team on symptom recognition and best testing practices to speed up fault identification.

Why This All Matters to You

By incorporating these essential tools and strategies for testing hydraulic cylinders, maintenance teams can prevent failures, optimise repair schedules, and uphold safety standards. Quality heads gain confidence knowing the hydraulic systems are tested rigorously and reliably.

Explore hydraulic solutions designed by top Hydraulic Cylinder Manufacturers to complement your testing and maintenance processes for even greater operational success.
