Why Honed Tubes and Piston Rods Are Essential for Durable Hydraulic Cylinders

Modern hydraulic cylinders underpin countless applications in industries ranging from manufacturing to construction. The backbone of their durability and performance? Honed tubes and piston rods. For hydraulic cylinder manufacturers, plant engineers, and quality heads, choosing and maintaining these components is the key to achieving low maintenance costs, high efficiency, and long service life in demanding environments.

Introduction: The Unsung Heroes of Hydraulic Reliability

Picture a hydraulic press lifting tons, or a machine performing millions of cycles with precision and speed. The honed tube creates the ideal internal environment for the piston to move smoothly, while the piston rod transmits enormous forces confidently, cycle after cycle. These two parts work invisibly together, determining whether a cylinder excels or fails over time.

What Are Honed Tubes?

A honed tube is a precision-engineered, seamless steel tube that undergoes a specialized honing process to achieve a smooth, accurate, and uniform internal surface. This ultra-smooth bore is essential for:

• Minimizing friction between the piston and cylinder wall
• Prolonging the life of critical seals
• Ensuring consistent pressure and leak-free operation
• Enabling rapid, responsive movement even under load

Honing eliminates most internal surface imperfections left by traditional machining, producing a finely finished, dimensionally accurate tube that can withstand high pressures and guide the piston with minimal resistance.

Key Benefits of Honed Tubes in Hydraulic Cylinders

Exceptional Durability: Honed tubes are highly resistant to wear and pressures, even in heavy-duty or high-cycle applications.

Precision and Accuracy: Tight tolerances and smooth bores mean better sealing and less risk of fluid leakage, supporting efficient fluid movement.

Reduced Maintenance: Fewer surface defects mean seals last longer and cylinders need less frequent servicing.

Improved Energy Efficiency: Less friction translates into less energy loss during each cycle, benefiting productivity and operating costs.

Corrosion Resistance: Quality honed tubes are made of alloys or treated steels that resist rust and chemical attack, extending cylinder lifespan.

What is a Piston Rod and Why Is It Crucial?

The piston rod is the robust shaft that connects the piston to the machine’s external mechanism. Its job is to transmit the hydraulic force generated inside the cylinder to move, lift, press, or rotate as needed—while operating under intense loads, side forces, and environmental challenges.

Essential Qualities of a Reliable Piston Rod

High Strength: Usually forged from high-tensile, chrome-plated steel or specialty alloy, capable of withstanding massive pull and push forces without bending or breaking.

Precision Guided Motion: Acts as a guide for the piston, requiring a perfectly straight and defect-free shaft that won’t bind or wear unevenly.

Corrosion and Wear Resistance: Special coatings and finishes (like hard chrome plating) drastically slow wear, reduce friction, and protect against corrosion or pitting, even in harsh conditions.

Seamless Seal Function: A smooth, hard surface is vital for maintaining a tight seal, preventing leaks, and supporting high-pressure work.

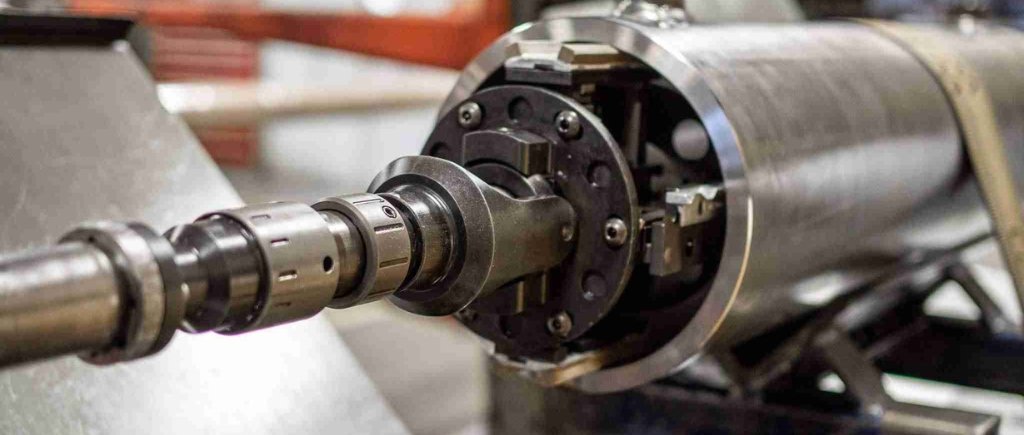

How Honed Tubes and Piston Rods Work Together

• The ultra-smooth interior of the honed tube forms a perfect sliding environment, reducing wear on both the piston and rod seals.
• The piston rod—combining core strength with polished surfaces—moves smoothly inside/outside the cylinder, preserving seal integrity.
• Any inconsistency in the tube (roughness, shape deviation) or rod (bending, surface flaws) will quickly cause leaks, excessive seal wear, or outright cylinder failure.
• Properly paired, these parts enable cylinders to operate at high speeds, pressures, and loads—cycle after cycle, year after year.

Advantages for Hydraulic Cylinder Manufacturers and End Users

Longer Equipment Life: Less wear equals fewer breakdowns and lower lifecycle costs.

Reliable Performance: Cylinders with quality honed tubes and engineered rods provide consistent output, critical for automated and safety-sensitive operations.

Low Total Cost of Ownership: Robust components mean fewer repairs/replacements, less downtime, and minimized maintenance budgets.

Adaptability: Modern honed tubes and piston rods are available in custom dimensions and finishes to meet diverse industrial applications—from robotics and presses to construction equipment and more.

Best Practice Tips

• Always source honed tubes and piston rods from proven manufacturers with strict quality control.
• Ensure material compatibility with your operating environment (e.g., corrosion-prone or high-pressure settings).
• Regularly inspect rods and tubes for wear, straightness, and surface integrity; replace at the first sign of significant damage.

In high-performing, long-lasting hydraulic cylinders, honed tubes and piston rods are more than just components—they are the foundation of reliability, precision, and total performance. Investing in quality and paying close attention to their condition pays measurable dividends in uptime, output quality, and cost management.
